Mobile Medical Van
Mobile Rehabilitation van with air conditioned facilities:

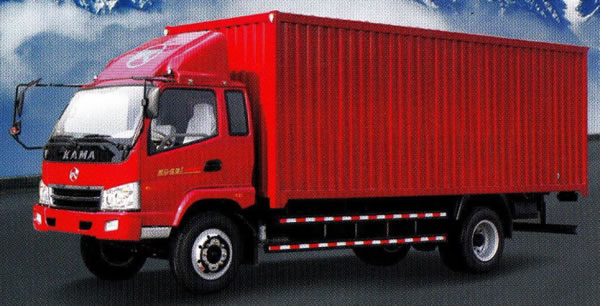

1. Truck Chassis Brand Name KAMA
2. Engine valve 8
3. Engine Overhead Cam DOHC
4. Ground Clearance 200 mm
5. Manufacturing Year 2014
6. Make/Model:
(a) Engine Model
(b) Chassis Model
(c) Model Code
(d) Color
Make/Model:
(a) 4108 KMC1124P3
(b) KMC1124P3
(c) Off white

7 Steering system Power steering
8 Engine Power 88KW/2800RPM
9 Engine Capacity 4214 CC
10 Number of Cylinders 4 (Four)
11 Number of Valves and Valve Arrangement 4, in line
12 Seating Capacity 3
13 Overall length 8000mm (without container)
14 Overall width 2330mm
15 Overall height 2550mm
16 Wheel base 4500mm
17 Gross vehicle weight (KG) 12320 kg
18 Fuel system (EFI\MPI\ECI) MPI
19 Suspension System Front 1124P leaf spring
20 Suspension System Rear 1080P3 leaf spring
21 Brake System Front Air Brake
22 Brake System Rear Air Brake
23 Fuel Tank Capacity 100 Liters
24 Fuel type Diesel
25 Tire Size and Brand 7.50-16, LUHE
26 Transmission system 6T46ISUZU TEC
27 Ground Clearance 210 mm
Mobile rehabilitation vans are required to be customized with the following equipment (other equipment or facilities):
Mobile Medical VanMobile Medical Van
1. Container (including fabrication and fitments) 1. Complete re-locatable box ISO container(20ft x 7.4ft x 8ft); divided into two parts: a therapy room and registration/ audio –visual room
2. Thermo insulated walls ensure an even temperature distribution.
3. Concealed air draft ducted air conditioning, in both compartments.
4. Hot compressed polyurethane paneled walls with an interconnecting locking arrangement (greater than 40 mm- the insulation barrier will be 60 mm sides and 60 mm top and floor)
5. Extendable Teflon coated PVC top with retractable aluminum section structure with one rear flap door (fitted with Hydraulic Wheel chair Lift) and one side door mounted on hinges with Teflon bushes
6. Panels that consist of both inner and outer lining with the inner lining coated in aluminum powder at a 1.2 mm thickness with an intervening rigid foam core, stuck with adhesive.
7. Corrosion free container and the floor with 18 mm Plywood should be covered with an antistatic PVC sheet, fitted with solar panels and linked with a solar inventor.
1. Space for necessary openings for door and windows on the side walls should be ensured during the building of the body, therapy and other audio visual equipment, air conditioning and fitment for electrical opening etc.
2. Work station (Registration Desk) and a desk for a couple of patients waiting for their therapy session.
3. File cabinet and cabinet for therapy instruments and other tools
4. AC\DC sockets in the location are necessary.
5. Generator compartment should be outfitted with a silent generator or solar inverter\lights for general lighting.
6. Complete fitments of all electrical and water connections for the equipment.
7. Parts and materials used in container bottom floor shall not exceed ISO corners.
8. The container’s bottom floor shall have appropriate strength and structure, to allow the container to be installed, fixed onto a truck chassis and trailer, and de-installation from truck chassis and trailer. It should comply with ISO 1161 and ISO 1496 standards.
Solar panel linked with solar inverter Solar panel linked with solar inverter:
Specifications:
1. Load: 180w
2. Operating time: 2 hour
3. Solar panel capacity: 250 w and 2 (two) pieces
4. Battery capacity: 12v/200 Ah
5. Charge controller: 300w/25A
6. Inverter: 12v/250w
2. Hydraulic Wheel Chair Lift 1. Maximum lifting load: 350 KG
2. Maximum lifting height: 700-1400 mm (might vary depending on the height of the container)
3. Voltage: 12/24 V
4. Length and width of platform: 1220x751 mm
3. Water tank and external duct Water storage tanks with minimum of a 50 liter capacity as well as external supply ducts.
4. Wash stand with mirror, soap and towel hanger As per standard specifications. Small scrub stations with running water dispensed out of SS tanks must be provided.
5. Air conditioning unit Ceiling mounted 2- ton system
6. Shelves with revolving chair and droppable table Built into the container shelves with a revolving chair and a droppable table
7. At least six multi pin plug outlets At least Six multi pin plugs should be built into the container.
8. MS stepper for Door Opening means: MS stepper for Door Opening means a metal steel made stepper (stair case) is used at the door steps to provide easy accesses.
Dimension: 50x40x46 cms
9. Fire Extinguisher CO2 with standard specification refills (3 liter capacity)
10. Wall mounted file and instrument cabinets Built into the container
11. Wall mounted working cabinets Built into the container. (1 m height, 1 length)
12. Working Chair Working chair built into the container
13. Working Table with Drawer Working table with a drawer is built into the container
14. Display board for offered services 1. Easily detachable display board- can be used both inside as well and outside the van for public information
2. Mounted on the walls of registration/audio visual room;
3. Display board size (Feet): 3 X 2
15. Towel holder Towel holder as per standard specifications.
16. Wall mirror Wall mirror as per standard specifications.
