Disc Plough & Disc Harrow

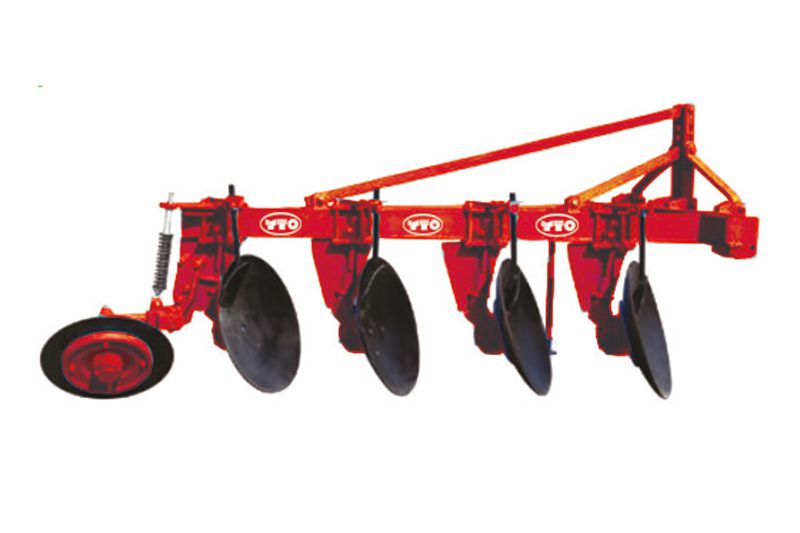

Disc Plough
Disc Plough

Features

  • The independent plough frame is easy to replace;
  • The whole structure is made of high-strength materials and thus is stable and durable;
  • Thanks to its structure, the disc plough performs well in efficient plowing with less resistance and it is less likely to be intertwined with grass

Specifications

Model
1LYT—225
1LYT—325
1LYT—425
1LYT—525
1LYT—625
Power (HP) 35-50 60-80 80-100 90-120 120-160
Plowing width (cm) 50 75 100 125 150
Working depth (cm) 25-30
Disc diameter (mm) 660 660/710 660/710 660/710 660/710
Linkage type 3-point linkage
Weight (kg) 350

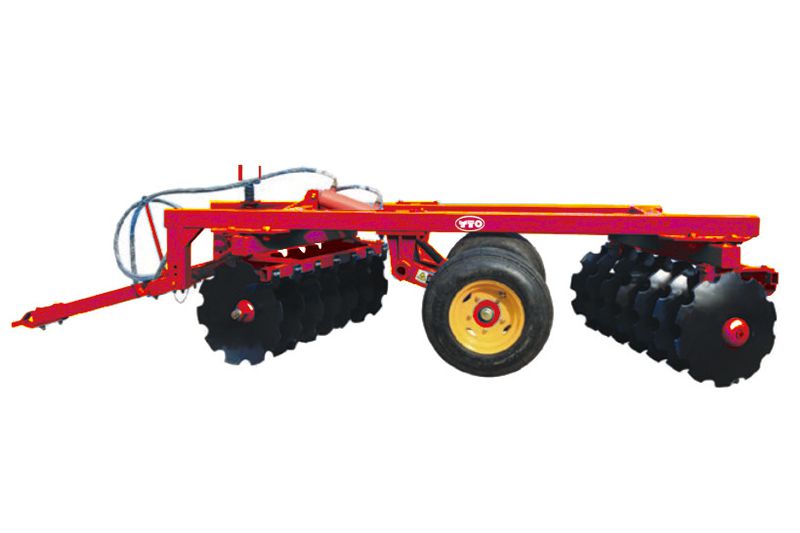

Disc Harrow
Disc Harrow

Features

  • The disc harrow has the advantage of easily tilling soil, breaking up clumps of soil and adapting to clayey soil, wasteland and weedy lands;
  • The integral frame is simple and strong, and hydraulic transport wheels with small turning radius enables convenient movement.

Specifications

Model
1BZ-2.2
1BZ-2.5
1BZ-3.0
1BZ-3.4
1BZ-4.0
Matched power (HP) 90-100 90-100 100-120 120-140 140-160
Working width (cm) 220 250 300 340 400
Working depth (cm) 20
Linkage type Tow
Disc diameter (mm) 660
No. of disc 20 24 28 32 36
Weight (kg) 1350 1450 1550 1750 1950
