Wheeled Tractor

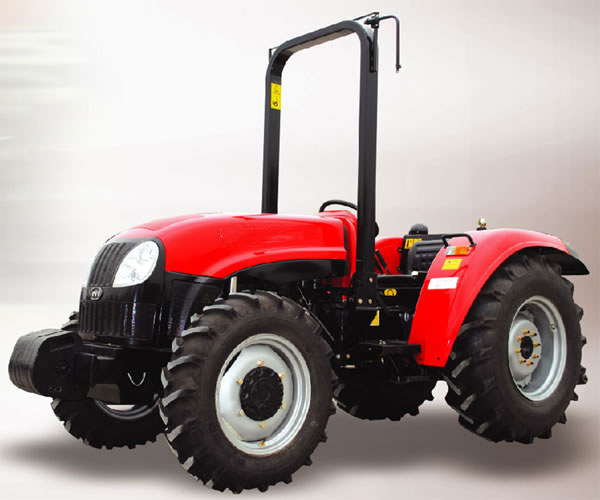

75-95HP 4-Wheel Drive Tractor
YTO-ELX754F/ELX854F four wheeled tractors are self-developed high power agricultural vehicles which have use advanced technologies within a global range. They are used for orchards or other special operations.
Features
1.Applicable to orchards operations due to compact structure, light weight, narrow tread and central ROPS;
2.Powerful and green engine with minimal vibration due to secondary balancer;
3.With European technologies, the transmission system can have synchronizer installed for non-stop gear shifting, thus improving the working efficiency.
4.Independently operated double-acting clutch easy to operate;
5.The tractor features hydrostatic steering with independent oil circuit. The steering wheel is adjustable to ease the driver’s operation.
6.Pedal-operated hydraulic disc service brake saves effort in operation. The parking brake operated by the handle is safe and reliable.
7.Synchronous and independent dual speed power output from PTO, 2 sets of hydraulic output for hitching implements.
Product Parameters
| Model | YTO-ELX754F | YTO-ELX854F | |
| Overall Dimension of Cab (L*W*H)(mm) | 4250x1500x2275 | 4250x1500x2275 | |
| Min. Operating Mass (with Cab) (kg） | 3100 | 3100 | |
| Max. counterweight mass (front/back) (kg) | 4*20/0 | 4*20/0 | |
| Engine | Model | 4RBT | 4RBT |
| Type | 4-cylinder, vertical, water-cooled, 4-stroke, direct injection combustion chamber, naturally aspirated | ||
| Displacement (L) | 4.58 | 4.75 | |
| Rated Power (kW) | 55 | 62.5 | |
| Rated Speed (rpm) | 2400 | 2400 | |
| Transmission | Gears | 12F+4R | 12F+4R |
| Forward speed (km/h) | 1.80-29.74 | 1.80-29.74 | |
| Reverse speed (km/h) | 4.69-14.07 | 4.69-14.07 | |
| Tire | Front | 9.5-20 | 9.5-20 |
| Rear | 14.9-24 | 14.9-24 | |
| Tread | Front wheels (Adjustable) (mm) | 1260 | 1260 |
| Rear wheels (Adjustable) (mm) | 1150 | 1150 | |
| Min. Ground Clearance(mm) | 300 | 300 | |
| Min. turning radius(m) | 6.5±0.3 | 6.5±0.3 | |
| PTO | Rear wheels (Adjustable) (mm) | Independent and synchronous | |
| Rotation rate(rpm) | 540/1000 | 540/1000 | |
| Power(kW) | 47 | 53 | |
| Tilling depth control method | Force control, position control, force and position control, float control | ||
| Lifting Force | At 610mm (KN) | ≥16 | ≥16 |
| Hinge point (KN) | ≥23 | ≥23 | |
-
